Universal iLIFT Suspension Lift System

SYSTEM DESCRIPTION

The iLIFT® system is the most advanced and robust suspension lift system on the market, with the unique capability to operate automatically, without the need for a driver to press a button to raise their vehicle.

By rapidly raising the vehicle manually or automatically, the lift system eliminates vehicle damage from scrapes on speed bumps, steep driveways, or from other road obstacles. Raising the vehicle also results in increase passenger mobility by allowing the driver and passenger to more easily enter and exit low vehicles.

The iLIFT Intelligent Suspension Lift System is unlike any suspension lift system on the market with these unique features:

  • Patented actuator & seal technologies allow highly efficient miniaturized components. Compact installation means no wasted trunk or cabin space.
  • Intelligent ECU including easy wireless configuration.
  • Available automated suspension lifting with patented use of sensor technology.
  • Use of factory cruise-control switch activation eliminates need for aftermarket switch activation - a patented feature.

UNIVERSAL iLIFT SYSTEM

The Universal iLIFT Suspension Lift System has been designed to fit most vehicles where an Application Specific iLIFT System is not currently available.

There are five important considerations regarding the fitment of your suspension with the iLIFT Suspension Lift System to determine compatibility. Click here for more details on these important considerations before purchasing.


OPTIONS

FRONT or FRONT & REAR:

The iLIFT Suspension Lift System can be configured to lift the front suspension or the front and rear suspension. Lifting the front of the car protects the front bumper and spoiler - typically the parts most prone to damage. Some cars with low rear overhanging diffusers and exhausts can further benefit from lifting both the front and rear. Optionally, additional components including rear actuators, valves, and sensors can be added to control lifting the rear suspension.

MANUAL or AUTOMATED & MANUAL:

The iLIFT Suspension Lift System can be activated with a switch to raise and lower the vehicle (with either a factory switch or the included rocker switch). Optionally, sensors can be added to provide automated raising and lowering of the vehicle. This patented feature uses advanced infrared proximity sensors that are constantly monitored by the ECU to raise the vehicle when an obstacle is detected. The vehicle will lower once it is detected that the obstacle has passed. This system is activated whenever the vehicle is driven under 25 mph. Automated systems can also be activated manually. Front systems include 4 sensors and front & rear systems include 6 sensors (the rear pair can be installed along the side of the car for situations like when the vehicle is stopped over a speed bump).

INDIVIDUAL COMPONENTS or MOUNTED ASSEMBLY:

Universal iLIFT Suspension Lift Sysems are available as a mounted assembly or as individual components. The mounted assembly includes all major system components mounted to a compact easy to install assembly with integrated vibration isolation mounts. The system is also available unmounted - where each component can be mounted individually to suit custom requirements.The individual components include mounting brackets for each major component (air tank, compressor, ECU, and PDM). The manifold can be mounted to the tank as shown, or mounted off the tank as needed.

Mounted Assembly Individual Components


INCLUDED

  • iLIFT Suspension Actuators
  • iLIFT Electronic Control Unit (ECU) w/ Wireless Configuration
  • iLIFT Manifold Control Unit
  • iLIFT Power Distribution Module (PDM)
  • iLIFT Wire Harness
  • iLIFT Air Tank with Integrated Mounting Bracket (mounted assembly) or separate Brackets for Individual Components
  • High Quality Nickel Plated Fittings, Air Tube, & Air Tube Cutting Tool
  • iLIFT Suspension Actuator Installation Tool


UNIQUE iLIFT SUSPENSION LIFT SYSTEM FEATURES

High Performance Technology

Featuring patented actuator & seal technology - the iLIFT Suspension Lift System lifts your car faster with smaller more compact components compared to any other system on the market.

Intelligent ECU with Wifi

The intelligent iLIFT ECU constantly monitors system parameters including system pressures to optimize system performance for your vehicle. Use wifi to easily configure your system wirelessly. Environmentally sealed enclosure means the ECU can be mounted in or outside the cabin.

Durability

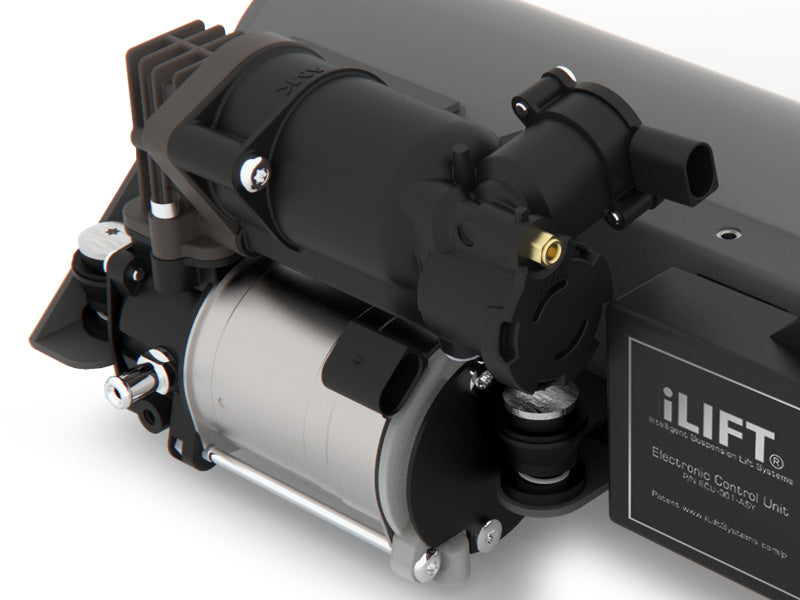

The iLIFT Suspension Lift System uses high quality, OEM-grade components like the German-made OEM-quality air compressor.

Automated Sensors

The available patented iLIFT Automated Sensors allows the iLIFT Suspension Lift System to automatically lift your vehicle when an obstacle is detected.
